Rackmount Agilent E4402B Spectrum Analyzer 9 kHz to 3.0 GHz Keysight E4402B

Name: Rackmount Agilent E4402B Spectrum Analyzer 9 kHz to 30 GHz Keysight E4402B
Brand: Keysight/Agilent
Price: 1 USD

Rackmount Agilent E4402B Spectrum Analyzer 9 kHz to 3.0 GHz Keysight E4402B Manufactures

Brand Name : Keysight/Agilent

Model Number : E4402B

Place of Origin : Malaysia

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T

Supply Ability : in stock

Product name : RF Spectrum Analyzer

Frequency : 9 kHz to 3.0 GHz

Form Factor : Portable/Rackmount ( /1CP )

Average Noise Level : +16 dBm

Condition : Pre-Owned

Functions : Tested, in Full Working Conditions

Contact Now

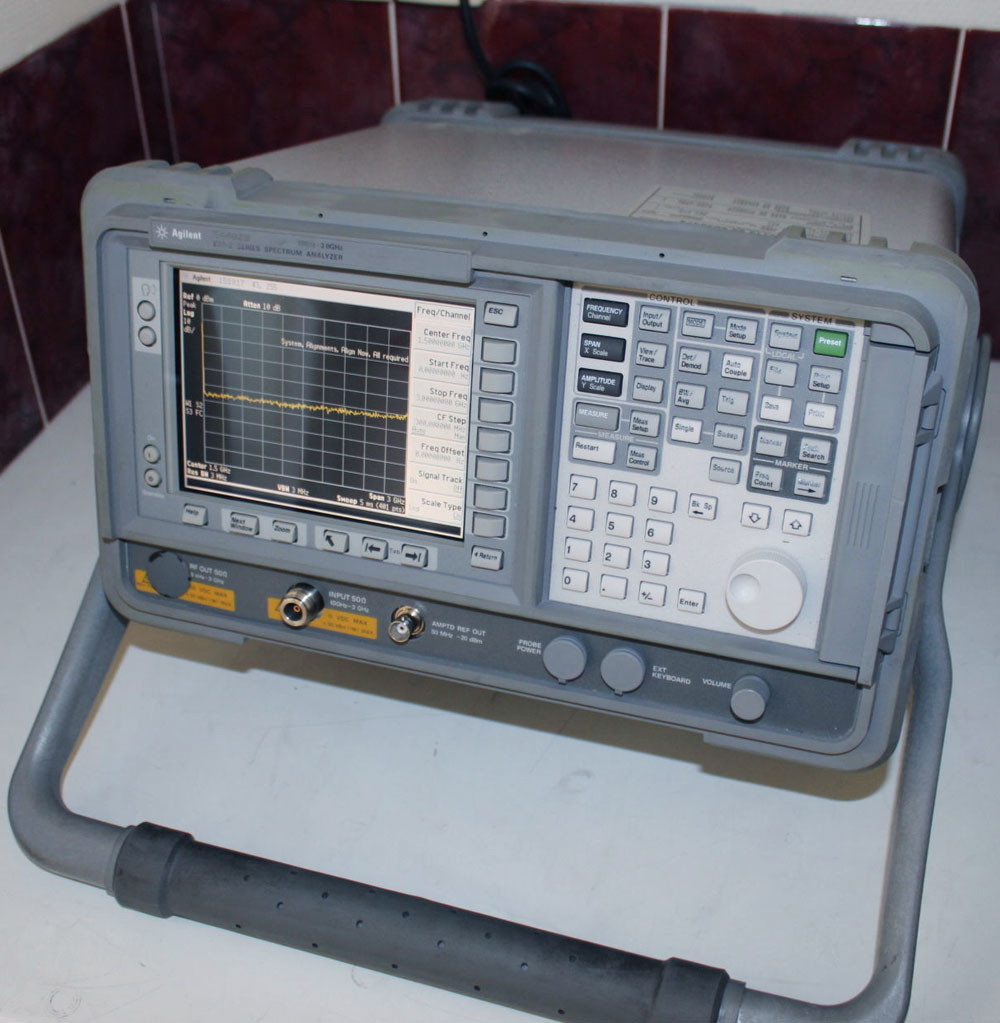

Keysight Agilent E4402B ESA-E Spectrum Analyzer, 9 kHz to 3.0 GHz

Description of Keysight Agilent E4402B

Customers looking for a general purpose spectrum analyzer will appreciate the flexibility of the ESA spectrum analyzer that can be used for a wide range of applications from aerospace and defense to the manufacturing line. Browse the ESA Brochure.

Customers who wish to take advantage of the ESA flexibility but who need a faster analyzer for the manufacturing line, or connectivity to LAN/USB in addition to GPIB, or want to do in depth signal analysis with 89600B VSA software will benefit from the new EXA signal analyzer. The EXA signal analyzer now comes standard with many of the ESAs optional features and yet offers more applications than the ESA.

Performance

0.4 dB overall amplitude accuracy
+16 dBm TOI
-166 dBm DANL, with internal preamp
1 Hz narrow resolution bandwidth (optional)

Measurement Applications

Phase Noise, Noise Figure, GSM/EDGE, cdmaOne and more view the full list of measurement applications
Agilent''s PowerSuite one-button power measurements included as standard

Features

10 MHz analysis bandwidth
Segmented sweep for up to 32 discontinuous spans in one sweep
Rugged and portable for lab grade performance in the field
5 minute warm-up to guaranteed measurement accuracy

Configuration Selections

Standard express analyzer E4402B-STD for faster delivery time, includes options AYX, BAA.
Standard express analyzer with tracking generator E4402B-STG for faster delivery time, includes options 1DN, AYX, BAA.
Communications test express analyzer E4402B-COM for faster delivery time, includes options 1D5, 1DR, B7D, B7E, BAA.
Custom configuration for maximum flexibility with standard delivery time.

List of Options

001	Second IF Output
002	Built-in Tracking Generator
003	Precison Frequency Reference
042	SOFT CARRYING CASE.
0Q8	Factory Delivered Service Training
1BN	Military Standard 45662A Calibration Certification
1BP	Military Standard 45662A Calibration with Test Data
8ZE	Factory Refurbished
908	Rack Flange Kit for Use without Handles
909	Front Handle & Rack Flange Kit
910	Additional operating and service manual
915	Additional Service Manual
916	Additional Set of User Manuals
H01	Special Testing For: Frequency Readout Accuracy, Stability (Residual FM), Displayed Average Noise, Residual Responses, Reference Level Uncertainty, Input VSWR
H03	Early Version of option 003
UK6	Commercial calibration with test results data

Application Software
Bluetooth ( /106 )
Cable Fault Location ( /225 )
Cable TV ( /227 )
CDMAONE ( /BAC )
GSM with Edge ( /252 )
Noise Figure ( /219 )
Phase Noise ( /120 )
