The MS46322A is a series of Economy ShockLine™ Vector Network Analyzers with frequency range from 1 MHz to 4/8/14/20/30/43.5 GHz. It is based on patented Shockline VNA-on-chip technology, which simplifies the internal VNA architecture at high frequencies, reduces instrument cost, enhances accuracy and minimizes measurement uncertainty. The MS46322A are all 2-port VNAs packaged in a compact and rugged 2U chassis. The entire series has 220 microseconds per point sweep speed, and better than 100 dB dynamic range to 43.5 GHz, making it suitable for testing passive devices in engineering, manufacturing and cost-sensitive education applications.
Highlights of Anritsu MS46322AEconomy ShockLine™ Vector Network Analyzer
- Ideal for testing RF and microwave devices
- Fast sweep speed and wide dynamic range minimizes production test time
- Excellent corrected directivity allows for less measurement uncertainty
- Time domain with time gating option grants easier and faster fault identification
- The LAN interface for remote control is faster than GPIB
- A common GUI and SCPI interface within the ShockLine family for ease of use
- USB ports allow for easy connection to peripherals like keyboard and mouse
- The small 2U packages allows for the efficient use of rack space
- Compatibility with the 36585K AutoCal enables fast calibrations up to 40 GHz
Impressive Features of Anritsu MS46322A Vector Network Analyzers
Anritsu MS46322A ShockLine vector network analyzers provide best in class performance, differing in the best indicators of speed, stability, dynamic range and low noise. The minimum test time and increased bandwidth make these analyzers optimal for testing any passive devices: cables, connectors, filters, attenuators, antennas, etc.
The Anritsu MS46322A vector network analyzer includes a built-in test signal source, switching circuits, and a built-in meter. The MS46322A analyzer is designed for entry-level and mid-level applications that arise in the design and manufacture of microwave devices up to 43.5 GHz.

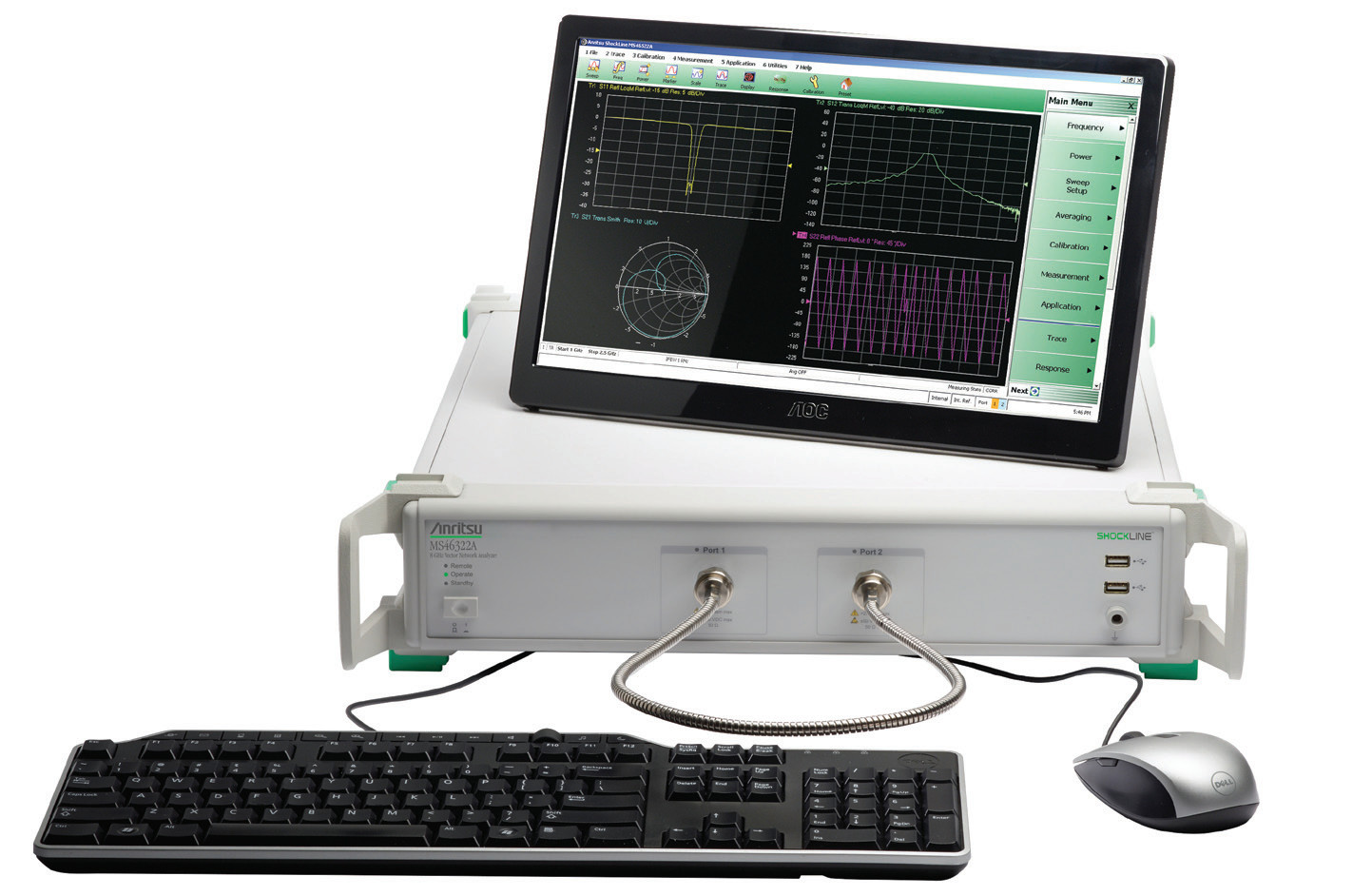

The MS46322A vector analyzer contains an integrated computer based on an Intel Core i5 processor. All processing is done inside the analyzer and you only need to connect an external monitor, mouse and keyboard to it. The photo below shows a screenshot from the external screen of the Anritsu MS46322A vector network analyzer, which simultaneously displays the measurement results of all four S parameters of the device under test.
Options of Anritsu MS46322AEconomy ShockLine™ Vector Network Analyzer
| MS46322A-001 |
Rack mount |
| MS46322A-002 |
Time Domain with time gating |
| MS46322A-004 |
1 MHz to 4 GHz, type N(f) ports |
| MS46322A-010 |
1 MHz to 8 GHz, type N(f) ports |
| MS46322A-014 |
1 MHz to 14 GHz, type Ruggedized K(m) ports |
| MS46322A-020 |
1 MHz to 20 GHz, type Ruggedized K(m) ports |
| MS46322A-030 |
1 MHz to 30 GHz, type Ruggedized K(m) ports |
| MS46322A-040 |
1 MHz to 43.5 GHz, type Ruggedized K(m) ports |
| (Ruggedized K(m) ports are compatible with 3.5 mm and SMA connectors) |
FAQ:
1. Can you ship the order to Canada or Australia?
Yes, we can. We send orders worldwide.
2. What delivery method do you use ? and delivery time?
We can ship by EMS, DHL, FedEx, UPS, and TNT with tracking numbers. The usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question?
You can contact us online or leave us messages below.
