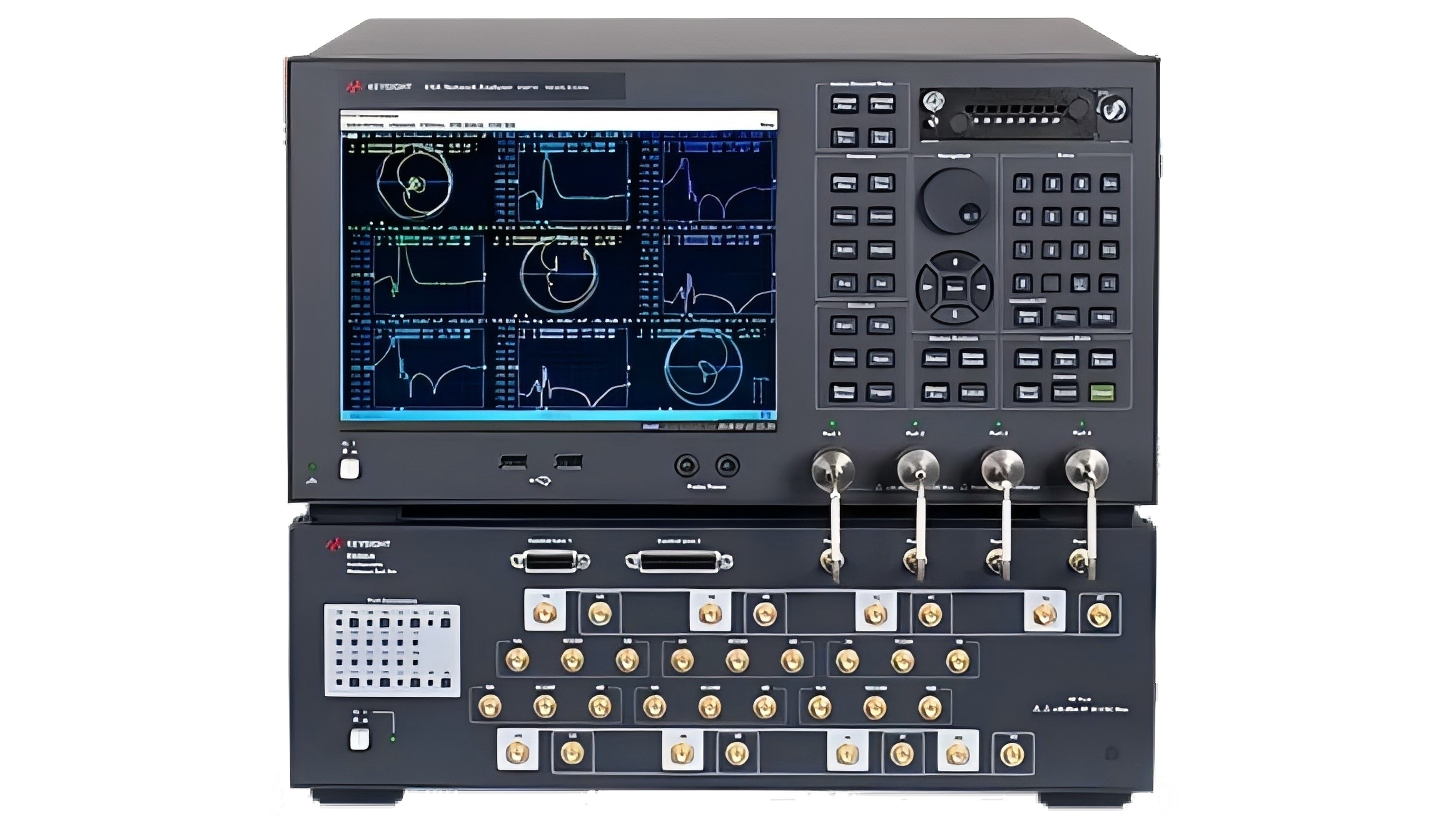

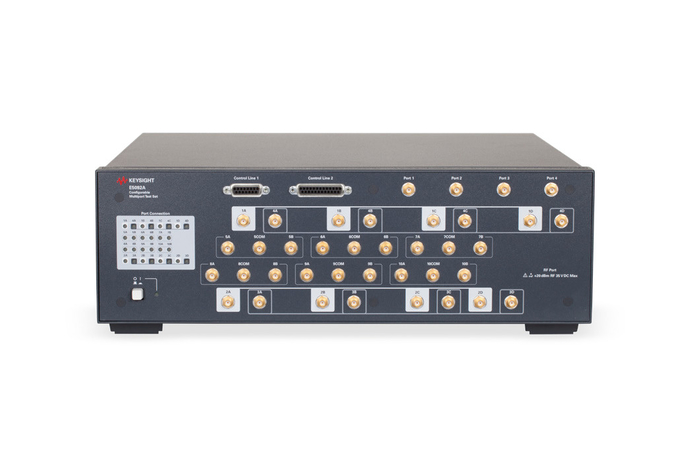

Keysight E5071C ENA Vector Network Analyzer, E5092A Configurable Multiport Test Set

Name: Keysight E5071C ENA Vector Network Analyzer E5092A Configurable Multiport Test Set
Brand: Keysight
Price: 1 USD

Keysight E5071C ENA Vector Network Analyzer, E5092A Configurable Multiport Test Set Manufactures

Brand Name : Keysight

Model Number : E5071C

Certification : ISO17025

Place of Origin : U.S.A

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T，Western Union

Supply Ability : In Stock

Delivery Time : 1~3 Working Days

Packaging Details : Carton

Brand : Keysight

module name : E5071C

Number of Built-In Ports : 2, 4

Maximum Frequency : 20 GHXz

Number of Internal Sources : 1

VNA Series : ENA

VNA Type : benchtop

Dynamic Range : 123 dB

Output Power : 10 dBm

Trace Noise : 0.003 dB rms (70 kHz IFBW)

Contact Now

Highlights of Keysight E5071C ENA Vector Network Analyzer

As device characterization demands more measurement types, higher frequencies, and tighter tolerances, you need to adapt to the current situation and future-proof against new challenges. The Keysight E5071C ENA was discontinued and replaced with more capable ENAs to meet current and future needs. Click the link below to see our latest ENAs in benchtop, PXI, and our new Streamline form factor.

Additional Features of Keysight E5071C ENA Vector Network Analyzer

2- or 4-port, 50 ohm, S-parameter test set
Protect your investment with upgradability across all of the options
Wide dynamic range: > 123 dB dynamic range at test port (typical)
Fast measurement speed: 39 ms @ full 2-port cal, 1601 points
High temperature stability: 0.005 dB/°C
Low trace noise: 0.004 dB RMS @ 70 kHz IFBW
Output Power: 10 dBm
Harmonics: -25 dBc
Noise Floor: -131 dBm
Best Speed at 201 Point, 1 Sweep: 5 ms
Integrated 2- and 4-ports with balanced measurements
Improve accuracy, yield and margins with wide dynamic range 130 dB, fast measurement speed 8 ms and excellent temperature stability 0.005 dB/°C

Options of Keysight E5071C ENA Vector Network Analyzer

E5071C-230	2-port test set, 9 kHz to 3 GHz without bias tees (Discontinued)
E5071C-235	2-port test set, 100 kHz to 3 GHz with bias tees (Discontinued)
E5071C-240	2-port test set, 9 kHz to 4.5 GHz without bias tees
E5071C-245	2-port test set, 100 kHz to 4.5 GHz with bias tees
E5071C-260	2-port test set, 9 kHz to 6.5 GHz without bias tees
E5071C-265	2-port test set, 100 kHz to 6.5 GHz with bias tees
E5071C-280	2-port test set, 9 kHz to 8.5 GHz without bias tees
E5071C-285	2-port test set, 100 kHz to 8.5 GHz with bias tees
E5071C-430	4-port test set, 9 kHz to 3 GHz without bias tees (Discontinued)
E5071C-435	4-port test set, 100 kHz to 3 GHz with bias tees (Discontinued)
E5071C-440	4-port test set, 9 kHz to 4.5 GHz without bias tees
E5071C-445	4-port test set, 100 kHz to 4.5 GHz with bias tees
E5071C-460	4-port test set, 9 kHz to 6.5 GHz without bias tees
E5071C-465	4-port test set, 100 kHz to 6.5 GHz with bias tees
E5071C-480	4-port test set, 9 kHz to 8.5 GHz without bias tees
E5071C-485	4-port test set, 100 kHz to 8.5 GHz with bias tees
E5071C-2D5	2-port test set, 300 kHz to 14 GHz with bias tees
E5071C-4D5	4-port test set, 300 kHz to 14 GHz with bias tees
E5071C-2K5	2-port test set, 300 kHz to 20 GHz with bias tees
E5071C-4K5	4-port test set, 300 kHz to 20 GHz with bias tees
