Description of Rohde and Schwarz ESIB40 EMI Test Receiver

EMI Test Receivers R&S ESIB EMI measurements up to 40 GHz conforming to standards The R&S ESIB family of EMI test receivers combines the flexibility and speed of spectrum analyzers with the large dynamic range required for EMI measurements in conformance with standards. The R&S ESIB family comprises three models with different upper frequency limits: The ESIB7 (20 Hz to 7 GHz), the ESIB26 (20 Hz to 26.5 GHz) and the ESIB40 (20 Hz to 40 GHz). The upper frequency limit of the ESIB26 and ESIB40 can be extended up to 110 GHz by means of external mixers (option FSE-B21). All three models are characterized by high sensitivity, excellent large-signal immunity, low measurement uncertainty and high measurement speed. The R&S ESIB carries out measurements in conformance with all industrial and military EMI standards such as CISPR, EN, VDE, ANSI, FCC, BS, ETS, VCCI, MIL-STD, VG, DEF-STAN, DO160 and GAM EG13. It goes without saying that the EMI Test Receivers R&S ESIB family complies with the basic standard, i.e. CISPR16-1 or VDE0876, which places stringent requirements on receiver dynamic range. The EMI Test Receivers R&S ESIB features a frequency range from 20 Hz to 7/26.5/40 GHz and 20 Hz to 1 GHz, preselection in receiver (fixed) and analyzer mode (selectable), 3 fixed-tuned and 6 or 7 tracking filters (models 26 and 40), a preamplifier with 20 dB gain in conjunction with preselector switch-selectable, resolution bandwidths from 200 Hz, 9 kHz, 120 kHz to CISPR 16-1, Parallel detectors, Peak (PK), average (AV), quasi-peak (QP) and RMS (max.4), automatic scan, 4 storable traces with up to 80000 measured values each (250000 values with one trace) and integrated controller function under Windows NT4.0.

The Rohde & Schwarz ESIB40 offers outstanding performance:

• Frequency range 20 Hz to 40 GHz

• Very high sensitivity (NF typ. 10 dB)

• Excellent large-signal immunity (1 dB comp.: +10 dBm)

• Low measurement uncertainty (< 1 dB up to 1 GHz)

• High measurement speed and result processing (min. meas. time 100 µs)

• Low inherent noise (<–3 dBµV)

Each R&S ESIB offers features and test routines for the various stages of product development as well as for the final EMC certification tests. The main users of the R&S ESIB are:

• EMC test houses and service providers
• Governmental organizations
• Safety standard authorities
• Military
• Large industrial development and EMC labs (e.g. automotive)

Features of the R&S ESIB40 EMI Receiver include:

• Fast scanning in test receiver mode and sweeping in spectrum analyzer mode

• Compliant with CISPR 16-1-1

• Two RF inputs Input 2 with additional pulse protection (20 Hz to 1 GHz)

• Integrated 20 dB preamplifier (selectable) 1 kHz to 7 GHz as standard; >7 GHz as option R&S ESIB-B2

• Preselection in receiver mode (fixed) and analyzer mode (selectable)

• Resolution bandwidths meeting MIL standards and CISPR 16 specifications in analyzer mode, -3 dB RBWs and -6 dB RBWs selectable

• Parallel detectors Peak, average, quasi-peak, CISPR average and RMS (max. four simultaneously)

• Automatic overload detection & autoranging

• Editors for user-definable transducer factors/sets and limit lines incl. integrated transducer factor/limit line libraries

• Internal test routines for automated or interactive preview & final measurements

• Evaluation functions for prescan, data reduction (peak list) and final measurement

• Split screen display (mixed analyzer/receiver mode) for detailed signal analysis

• Convenient scan table editor Up to ten subranges with individual parameter setting

• Automatic scan and display of traces in parallel (receiver mode) Max. four traces with up to 80.000 samples each (250.000 samples with one trace)

• Time-domain measurements (zero span) at up to 50 ns resolution for interference source analysis

​Additional highlights of the R&S ESIB40 include:

• Extensive self-calibration routines including result documentation

• Interfaces: IEC/IEEE, serial, parallel, LAN (optional)

• Comprehensive marker evaluation functions search, delta, tune-to-marker, marker track

• Integrated controller function under Windows NT 4.0 printer-driver compatibility, easy hardcopy capabilities, quick firmware update

• Internal tracking generator up to 7 GHz (option R&S FSE-B10)

• Bright 24 cm LC color display

• Noise display (30 Hz to 100 kHz) with magn. coil R&S HZ-10

List of Options of Rohde and Schwarz ESIB40 EMI Test Receiver

Our service:

1.One-stop service from manufacture to shipping.

2.Your inquiry related to our products or prices will be replied in 24hours.
3.Well-trained and experienced staffs to answer all your enquires influent English.
4.Distributor ship is offered for your unique desigh and some our current models.
5.Protection of your sales area, ideas of design and all your private information.

FAQ:

1.Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question ?

You can contact us online or leave us messages below.

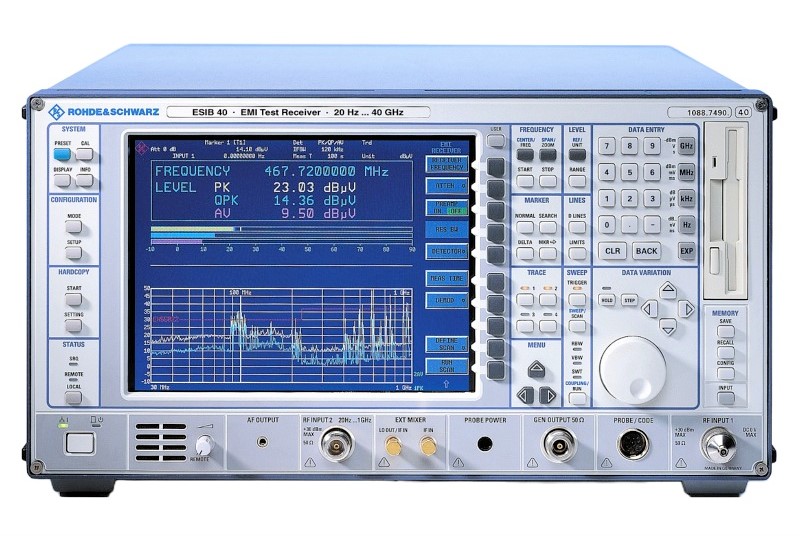

Rohde and Schwarz ESIB40 EMI Test Receiver, 20Hz - 40GHz Images
