Rohde And Schwarz NRT-Z14 Directional Power Sensors 25MHz to 1GHz, AVG 6mW to 120W, 300W Peak. N-Type(f), NRT-ZXX Series

Name: Rohde And Schwarz NRTZ14 Directional Power Sensors 25MHz to 1GHz AVG 6mW to 120W 300W Peak NTypef NRTZXX Series
Brand: Rohde and Schwarz
Price: 1 USD

Rohde And Schwarz NRT-Z14 Directional Power Sensors 25MHz to 1GHz, AVG 6mW to 120W, 300W Peak. N-Type(f), NRT-ZXX Series Manufactures

Brand Name : Rohde and Schwarz

Model Number : NRT-Z14

Place of Origin : Germany

MOQ : 1 Piece

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : In Stock

Delivery Time : 1~3 Working Days

Packaging Details : Carton

Certification : ISO17025

Product Name : Directional Power Sensor

Frequency range : 25MHz to 1GHz

Average Power measurement range : 0.006 W to 120 W

Peak Power measurement range : 300W

Insertion loss : max. 0.06 dB

Condition : Pre-Owned

Functions : Tested, in Full Working Conditions

Contact Now

Rohde and Schwarz NRT-Z14 Directional Power Sensors, 25MHz to 1GHz, AVG 6mW to 120W, 300W Peak
Description of Rohde And Schwarz NRT-Z14 Directional Power Sensors

The Rohde & Schwarz NRT-Z14 directional power sensors are fully calibrated, independent measuring instruments that can also be used without a base unit. These directional power sensors simultaneously measure forward and reverse power and calculate additional parameters such as load matching. The Rohde & Schwarz NRT-Z14 directional power sensors feature good matching, low insertion loss and excellent intermodulation characteristics.

Conventional directional power meters only measure RF and microwave signals that have an unmodulated envelope. The Rohde & Schwarz NRT-Z14 directional power sensors have been designed to also meet the requirements of digitally modulated signals. The key factor is their ability to correctly measure the average power (RMS value) of a signal irrespective of its envelope. The sensors behave like a thermal power meter and offer the best accuracy and measurement range (35 dB to 40 dB).
Features of Rohde And Schwarz NRT-Z14 Directional Power Sensors

Direct power monitoring on PC
Average power (RMS value)
Peak envelope power (PEP) and crest factor
Average burst power
Complementary cumulative distribution function (CCDF)

Key Facts of Rohde And Schwarz NRT-Z14 Directional Power Sensors

Frequency range:25 MHz to 1 GHz
Measurement range AVG:6 mW to 120 W, PEP:0.4 to 300W
Low insertion loss
Measurement of average power, average burst power, peak power, crest factor, CCDF and mismatch
Can be used in traditional analog radio and broadcast frequency bands

Average power (RMS value) of Rohde And Schwarz NRT-Z14 Directional Power Sensors

This function returns the average value of the power for any type of test signal (modulated, unmodulated or several carriers). It features a measurement range of 35 dB to 40 dB and high measurement accuracy.

Peak envelope power (PEP) and crest factor of Rohde And Schwarz NRT-Z14 Directional Power Sensors

Both parameters provide information on the peak power of a modulated envelope and describe the overdrive characteristics of transmitter output stages. The result of the crest factor measurement is referenced to the average power and displayed in dB. Measurements are performed using a video bandwidth that is adjustable in several steps, so that even short-time and high-power peaks can be determined.

Average burst power of Rohde And Schwarz NRT-Z14 Directional Power Sensors

This function can be used to measure modulated and unmodulated bursts based on the average power and the duty cycle. Both can be defined by the user or determined automatically by the power sensor.

Complementary cumulative distribution function (CCDF) of Rohde And Schwarz NRT-Z14 Directional Power Sensors

This function measures the probability of the peak envelope power exceeding a preset threshold so that the amplitude distribution of signals with an unknown envelope can be determined.

Our service
One-stop service from manufacture to shipping.
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires influent English.
3. Distributor ship is offered for your unique desigh and some our current models.
4. Protection of your sales area, ideas of design and all your private information.

FAQ
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below.

Rohde And Schwarz NRT-Z14 Directional Power Sensors 25MHz to 1GHz, AVG 6mW to 120W, 300W Peak. N-Type(f), NRT-ZXX Series

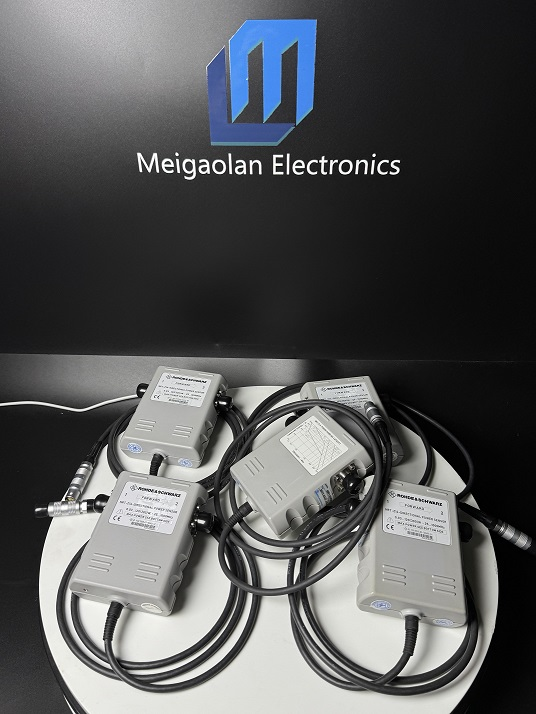

Rohde And Schwarz NRT-Z14 Directional Power Sensors 25MHz to 1GHz, AVG 6mW to 120W, 300W Peak. N-Type(f), NRT-ZXX Series Images
